Livolo EU Standard VL-C701B-15 110~250V Touch Screen Smart Wall Door Bell Switch With Gray Crystal Glass Switch Panel

Product Description

Livolo EU Standard VL-C701B-15,110~250V Touch Screen Smart Wall Door Bell Switch With Gray Crystal Glass Switch Panel

Product features:

1-Sensitive touch control feeling like iPhone touch.

2-Toughened glass, it’s easy to clean. Non-discoloring, always look as new.

3-Waterproof, it’s available to operate touch witch any time.

4-Fireproof, strengthen protection for the short circuit of power line.

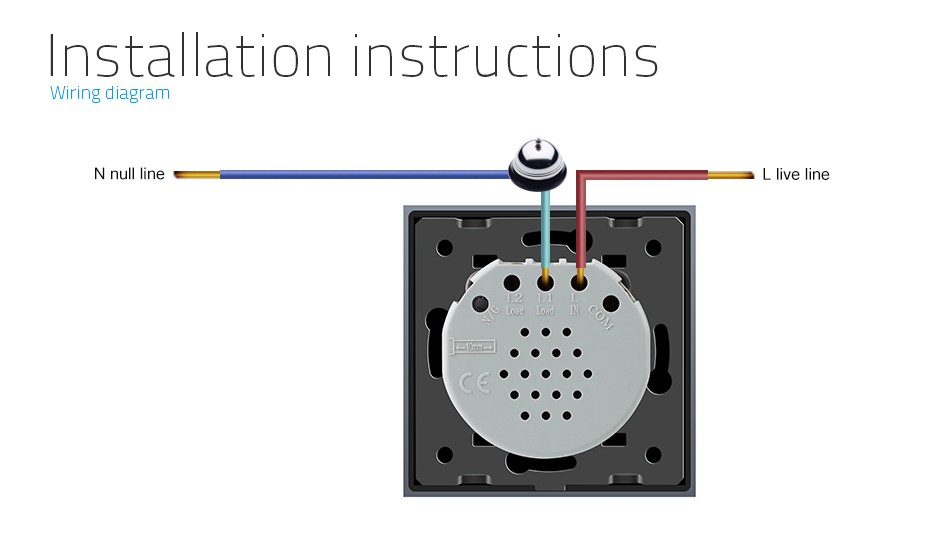

5-Single live wire control, easy to install, replace the old switch directly.

6-Wireless RF remote control, make the operation more convenient, and our life easier.

7-With red&blue LED indicator, distinguished in the darkness. Red is light on, blue is light off.

8-LIVOLO has good reputation overseas.

9- Applicable to common lamps, such as incandescent, fluorescent lamps, led lamps and so on.

Technical Parameters:

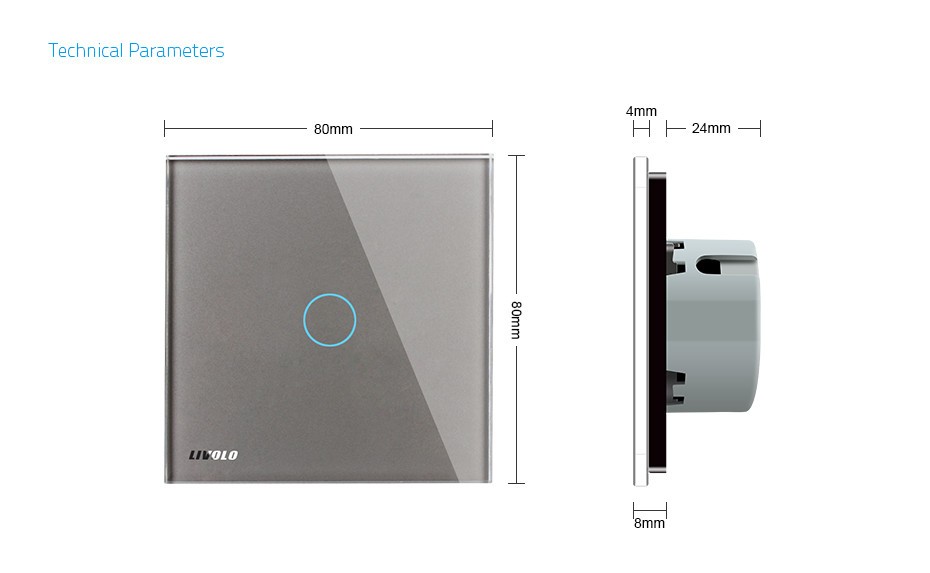

·Product size:

80mm*80mm, 150 mm*80mm, 223mm*80mm

·Shell Material

PC retardant material

·     Panel Material

     Toughen glass

·Operating Voltage

AC 110V~250V

·Max Current

5A / Dimmer switch: 2A

·Rated Power

3W-1000W/2000W  / Dimmer switch: 5W-500W

·Energy Consumption

<0.1mA

·Operating Environment

30~70 Centigrade, less than 95%RH

·Certification

CE, ROSH

·Longevity

100,000 times operation/ Two years warranty

Note: The switch is not suitable for the inductive ballast fluorescent.



Product Description





Our Services



It is free to make your logo and customized box if order is more than 1000pcs.

Please don't hesitate to contact us with your idea and request the product catalog!



Contact us now:

Skype: cassiechen0208

Whatsapp: +86 18072158360



FAQ

 1. When I turn on the switch does it have light?

Yes, all our touch switches have led indicators, turn on the switch – red indicators, turn off the switch – blue indicator.



2. Can I used it with energy-saving lamps or LED lamps?

Yes, our switches can work with energy-saving lamps and LED lamps as long as the wattage is more than 1W.



3. What kind of lamps can be fit with your dimmer switch?

Filament lamp and dimmable LED lamp; All bulbs works with mechanical dimmer, works with ours, Only the wattage should be 5-500W.



4. Can your switch work with home automation system?

It depends, if the system only needs a signal on/off, it can be. Otherwise, our switch is not suitable for home automation system because the codes are different.



5. Do you have an intermediate switch?

Yes, our 2 way switch also can be an intermediate switch, you can connect three 2 way switches together.



6. Which output from the switch-Relay or triac?

For on/off Touch Switch-relay, dimmer switch – triac.



7. Can I install the switch vertically?

Sure, any pose.
